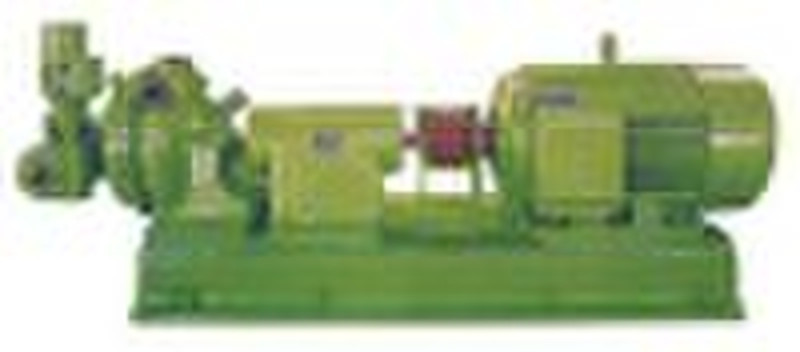

Double disc refiner

The ZDP series of double refiner machine is continuous beating pulp equipments for under low and consistency(2-5%)operation condition of various syrup,and can make various fine whet equipments. The structure tightly packed,the weight is light,being easy to maintain. ZDP14,ZDP15,ZDP16 is developed my factory to have substituted for imported one.The machine's structure is advanced and reasonable,the breakdown rate is low and whets the syrup to have greatcapacity,is aper machine kits to produce 30000 tons above every year,is the ideal renewable exchangeable product. refiner Parameter type Ltem ZDP12 ZDP11 ZDP13 ZDP14 ZDP15 ZDP16 Disc diameter mm Φ350 Φ450 Φ550 Φ650 Φ750 Φ850 Feed-pipe diameter mm 2-Φ60 2-Φ65 2-Φ80 2-Φ19 2-Φ100 2-Φ124 Outlet pipe diameter mm Φ70 Φ70 Φ90 Φ120 Φ160 Φ200 Pulp amount t/d 4-35 8-60 15-100 20-150 35-200 50-300 Pulp consistency % 2-5 2-5 2.5-5 2.5-5 2.5-5 2.5-5 Pulp pressure Mpa 0.15-0.3 0.15-0.3 0.15-0.2 0.06-0.15 0.06-0.15 0.06-0.15 Main motor power kW/V 45/380 110(75)/380 215/380 355/6000 630/6000 800/6000 Sub- motor power kW 0.4 0.4 0.45/.075 0.45/0.75 0.45/0.75 Main machine weight kg 2780 49003022() 5306()5109() ××Dimensions mm 2437×720×860 2975×940×1020 4015×1210×1020 4700×1120×1464 5000×1358×1200 5412×1470×1690
